Sources of GM food

The process of GM produces combinations of genetic material that is never made previously, including genes sequences that are completely synthesized in the laboratory, differing significantly from their the original DNA. This process alters the recombination sequences of the DNA and therefore induces positive changes like, tolerance to crops, better sensory attributes, to crops.

The sources of GM foods can be used for:

Consumption:A crop, such as a fruit or vegetable, that is genetically modified.
An ingredient for a food product:Food, take example, flour that comes from a GM crop, such as maize, and the GM DNA is still present in the food and can be identified.

GM processing aid:In cheese production, the gene for producing chymosin is inserted in bacteria, so the bacteria can produce chymosin. Only the bacteria are genetically modified and so the cheese is not GM-ed.

Animal feed:GM crops, such as maize, are used to feed animals which are later eaten, such as chickens. The GM material is not in the meat that we eat. There are also animal products, such as eggs and milk that come from animals fed on GM crops.

e enjte, 5 korrik 2007

Analytical techniques of toxins

Test kits

Rapid results. .g. BTA test strip for C. botulism
BTA test strip for Staphylococcal Enterotoxin
High performance Liquid Chromatography (HPLC)
-Detection of very small amt. of toxins by using fluorescence detector.
-Gives better results when coupled with Atmospheric Pressure/ Electrospray Ionisation (API/ESI)

Detection of toxins of Bacillus cereus

Gene detection techniques can be applied including PCR.PCR primers for the detection of these genes were used to detect the genes. A commercial immunoassay (Tecra visual immunoassay [VIA]) is used for identification of enterotoxic strains of B. cereus. The gene was cloned and sequenced from B. cereus. For DNA preparation, bacteria were plated on agar and incubated overnight at 30°C. An amount of bacteria corresponding to a colony 1 to 2 mm in diameter was transferred to Tris-EDTA buffer. Bacteria were lysed by incubation, and debris was removed by centrifugation. The DNA-containing supernatant was transferred to a new Microfuge tube and stored. Primers for detection of gene were given. PCR was performed essentially. PCR products were analyzed by agarose gel electrophoresis.

Detection of staphylococcal enterotoxin

For detecting trace amounts of staphylococcal enterotoxin in foods, the toxin must be separated from food constituents and concentrated before identification by specific precipitation with antiserum. The principles are used for the purpose: the selective adsorption of the enterotoxin from an extract of the food onto ion exchange resins and the use of physical and chemical procedures for the selective removal of food constituents from the extract, leaving the enterotoxin(s) in solution.

Developed rapid methods based on monoclonal antibodies like the ELISA and Reverse Passive Latex Agglutination are used for detection of enterotoxins. The principle of using ELISA is by binding an immunosorbent substrate onto either the enzyme or the antibody. They both retain their biologic activity; the change in enzyme activity as a result of the enzyme-antibody-antigen reaction is proportional to the concentration of the antigen and can be measured spectrophotometrically.

Analytical techniques for isolation and identification of food borne pathogens


Fluorescent enzyme immunoassay

The assay utilizes a beta-galactosidase-murine myeloma monoclonal antibody (M467) conjugate prepared with the heterobifunctional coupling reagent, N-succinimidyl 3-(2-pyridyldithio) propionate (SPDP) and uses 4-methyl umbelliferyl beta-D-galactoside as a fluorogenic substrate for the enzyme.
-To test for Salmonella, Listeria, Staphylococcus Aureus

Visual Immunoassay (VIA)

Visual immunoassay is used based on two monoclonal antibodies for the semi-quantitative determination of plasma elastase levels. VIA is considered a reliable ELISA (enzyme linked immunosorbent assay) for the detection of Salmonella spp. E. coli, Campylobacter, Staphylococcus Aureus and Listeria in food samples.

High affinity "capture" antibodies specific for the pathogen tested have been adsorbed onto the surface of wells. If antigens are present in the sample, they are captured by the antibodies. All other material in the sample is washed away before the addition of enzyme labelled antibodies (conjugate) specific for the pathogen. Presence is indicated when the bound conjugate converts the substrate to a green color, detected by a colourimetric detection system. Alternatively, if the result shows absence, no green color develops.

Results can be out within 42 hours, and it is AOAC Official Methods Validated and other international approvals.

Staphylococcus Aureus Visual Immunoassay

This test employs S aureus-specific DNA probes and a colourimetric detection system for the detection of S. aureus in food samples following broth culture enrichment. A sample is considered non-reactive for the presence of S. aureus if the absorbance value obtained is less than or equal to the established cutoff value for the assay and vice versa.

Detection using DNA probe

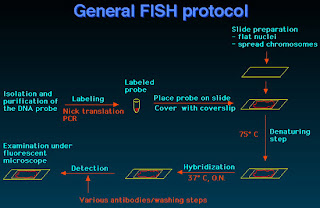

In fluorescence in situ hybridization (FISH), a DNA probe is labeled with a fluorescent dye or a haptene. The labeled DNA is purified, concentrated, resuspended in hybridization buffer and is hybridized onto chromosomes and nuclei on slides. After overnight hybridization, the slides are rinsed in fluorescent-labeled antibodies to detect haptene-labeled DNA. The slides are mounted with antifade solution and are visualized at the fluorescent microscope, using appropriate filters. This procedure is illustrated in the figure.

This method identifies the pathogens by extracting a small amount of DNA and amplifies the target sequences without cultivation. The DNA probe allows the simultaneous analysis of thousands of gene in a short assay time providing high accuracy by using the species-specific probes. Probes made of peptide nucleic acids (PNA), which have very strong affinity for complementary DNA sequence, can further improve the specificity. Therefore, using PNA probes can more effectively discriminate the pathogens.
To detect the specific microbes, a small amount of the specific sample is necessary, with the scale-down of a DNA chip.

Bead immunocapture

A test using immunomagnetic beads with an antibody to test for Listeria. These beads are mixed with a sample to isolate Listeria. In this test, Listeria is bound to antibodies on microscopic magnetic beads. These beads are then isolated from the rest of food or environmental sample. Listeria is confirmed immunologically and, if desired, characterized biochemically, in about 24 hours.

REVEAL for Salmonella

It is a test system that provides for the rapid recovery of Salmonella in food and allowing detection and identification of Salmonella within 21 hours.

Following selective enrichment in Rappaport-Vasiliadis broth, a portion of the sample enrichment is placed into the sample port of the Reveal Device initiating flow. The Reveal Device contains antibodies with high specificity to Salmonella antigens. These antibodies are bound to colloidal gold and, separately, to a solid support matrix. Any Salmonella antigen present will bind to the gold conjugated antibodies forming an antigen – antibody – chromogen complex. This complex flows across a lateral flow membrane and is subsequently bound by antibody immobilized on the membrane. This causes the gold conjugate to precipitate, forming a visible line and indicating a positive reaction. Proper test completion and flow is indicated by a control line which forms further up in the test window and verifies a valid test run. Absence of a control line invalidates the test. Record results at 10 minutes incubation time.


The principle behind the technique relies on the fact that antibodies produced by the immune system are incredibly sensitive to differences in the structure of molecules they are exposed to. The antibodies of one species will react when exposed to blood serum, containing the proteins, of another. The antibodies that respond against a specific blood protein are manufactured and collected from an outgroup species. These antibodies, in the form of an antiserum are then exposed to the blood proteins of the species under investigation.

If an organism is only very distantly related to the outgroup species a strong reaction will take place between the blood serum (containing the protein) and the antibodies, and there is very tight binding between the two. The degree of relatedness between the species being tested is reflected by the strength of reaction when exposed to the antiserum. Species more closely related to the outgroup will exhibit a weaker reaction. The experiment is usually conducted on an agar gel with the test blood protein serums arranged in wells around the test antiserum, or some arrangement that will enable comparisons of the test species.

Transia Card

For E. coli 0157, salmonella, Listeria, Staphylococcal enterotoxins.
The Transia Plate method uses only one broth, in a two-step protocol, followed by a rapid immunoassay. It uses only one broth, in a two-step protocol, followed by a rapid immunoassay. The Transia ELISA technology, with ready-to-use reagents and a microtiterplate with divisible strips, makes the kit ideal for both single tests and high-throughput automation.

Production of Monoclonal Antibodies

Antibodies which neutralize botulinum neurotoxin serotype F are produced using biologically active botulinum neurotoxin instead of toxoid for immunization and exploiting the importance of cross reaction between various serotypes to obtain immune responses, or monoclonal antibodies, to additional serotypes of interest. Methods of preparation and uses of the neutralizing botulinum neurotoxin antibodies are described.
PCR (polymerase chain reaction)

In this technique, double-stranded target DNA is denatured to provide single-stranded templates to which specific oligonucleotide primers are hybridized, followed by primer extension with a thermostable DNA polymerase. Primer pairs complementary to opposite strands of a DNA region are chosen. Repetitive denaturation, annealing, and primer extension cycles exponentially amplify a unique DNA fragment bordered by the primers. PCR-based methods have been developed to detect foodborne pathogens, including Listeria monocytogenes, enterotoxigenic Escherichia coli, V. vulnificus, V. cholerae, Shigella flexneri, Yersinia enterocolitica, various Salmonella and Campylobacter species.

Analytical Method for testing GMOs

PCR (polymerase chain reaction)

1. Identifies genetically-modified organisms in a wide variety of materials and differentiates between different GMO components and quantifies them.
2. Determines if there are GMOs in the materials examined.
3. Determines the relative percentage of genetically-modified food.
4. Identifies animal derived ingredients by differentiating of species on the DNA level and analysis of allergens.
5. Detects proteins and even the smallest traces of allergen.
However, it is time consuming and relatively expensive ( up to $300 per analysis)

Gel electrophoresis
Clumsy and less than optimal for screening multiplex PCR products.
